Intelligent evaporation

Hei-VAP Rotary Evaporators

Hei-VAP Rotary Evaporators provide efficient, precise, and safe solvent evaporation for laboratories. The range includes models from entry-level to advanced, with options for automated distillations. They are ideal for everything from teaching labs to high-level research institutions.

Hei-VAP Model Comparison Table

Core Expert Expert Control Ultimate Ultimate Control
Core

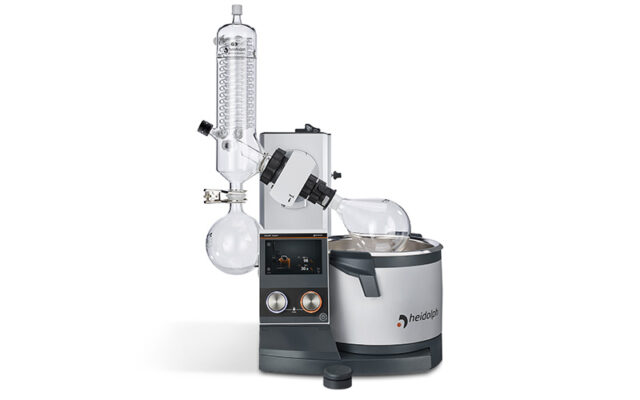

Expert
Expert
Control

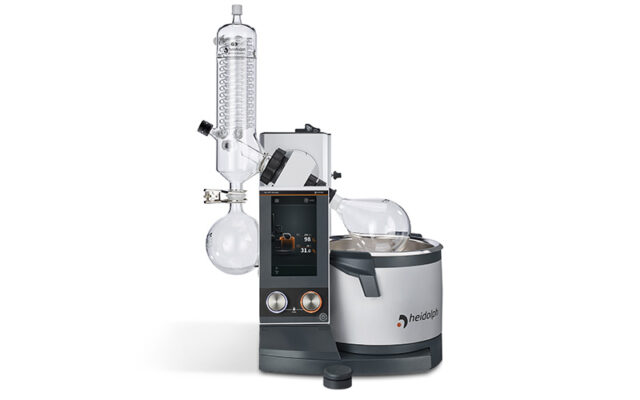

Ultimate

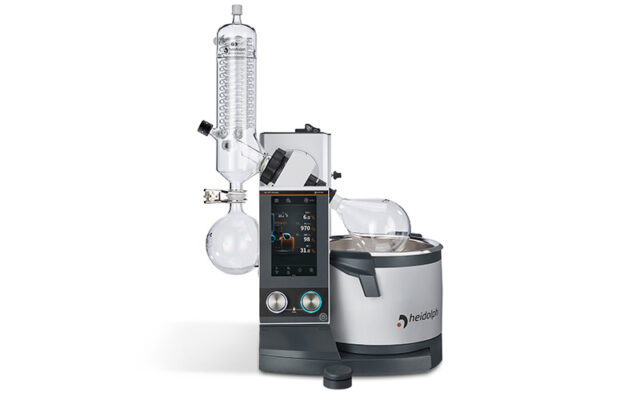

Ultimate
Control
Lift Hand or Motor lift Hand or Motor lift Hand or Motor lift Hand or Motor lift Hand or Motor lift
Rotation speed range 10 – 280 rpm 10 – 280 rpm 10 – 280 rpm 10 – 280 rpm 10 – 280 rpm
Display 3.5″ LCD Display 5″ LCD colour
graphic display		 5″ LCD colour
graphic display		 7″ LCD colour
graphic display		 7″ LCD colour
graphic display
Volume heating bath 4.5 l 4.5 l 4.5 l 4.5 l 4.5 l
Heating bath
temperature range		 20-100°C (H20)
20-210°C (oil)		 20-100°C (H20)
20-210°C (oil)		 20-100°C (H20)
20-210°C (oil)		 20-100°C (H20)
20-210°C (oil)		 20-100°C (H20)
20-210°C (oil)
Max. size
evaporating flask		 5 l 5 l 5 l 5 l 5 l
Integrated vacuum
controller		 No No Yes No Yes
Timer No Yes Yes Yes Yes
Solvent Library No Yes Yes Yes Yes
Interfaces N/A USB and Micro SD USB and Micro SD USB and Micro SD
plus LAN / RS232		 USB and Micro SD
plus LAN / RS232

At a Glance

Hei-VAP Models

Hei-VAP Core Feb 2025

Hei-VAP Core

Ideal for standard evaporation tasks

  • Simple operation with an intuitive interface
  • Display panel made of glass-bead strengthened material that is splash water-resistant
  • Rotation speed and heating bath temperature are controlled on the panel
Watch the video

Save up to 20% on Hei-VAP Rotary Evaporators

Shop Now!

Features & Benefits

E3-Hei-VAP-Condenser-XL

Performance & efficiency

  • Intelligent Evaporation – Automation and optimisation for up to 30% time savings.

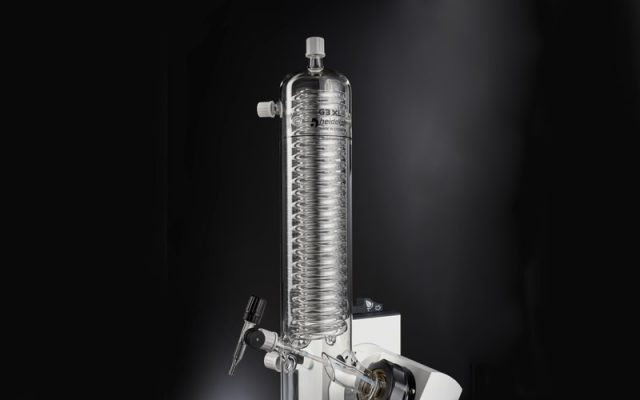

  • XL Condenser – 2200 cm² condensing surface for up to 40% higher evaporation rates.
  • High Quality parts – Easy to remove vapour tube, clamping sleeve and graphite filled PTFE seal, engineered to reduce wear and consumption of spares by up to 75%

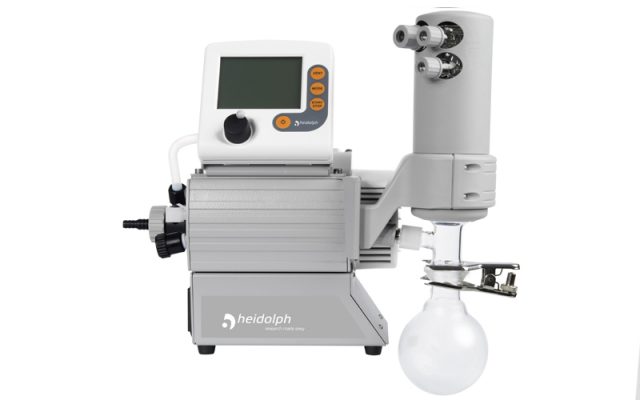

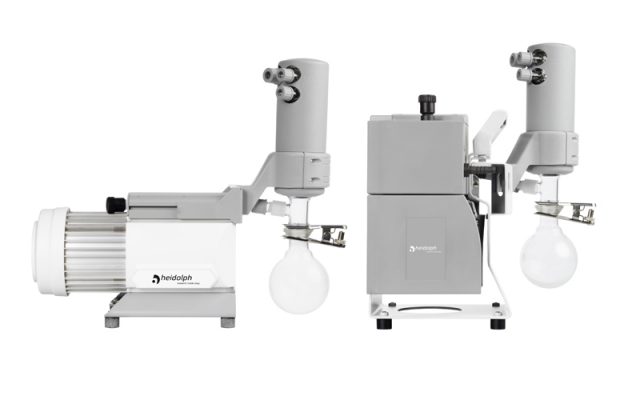

Chillers, Vacuum Pumps & Accessories

Heidolph Hei-CHILL Pro Range

Hei-CHILL Pro Chillers

The perfect add-on available with cooling capacities of 400, 700 or 1100 W.

  • Sustainable and future-proven technology – Natural refrigerants to reduce the global warming potential to nearly zero.
  • Powerful and efficient – High cooling capacity for highest evaporation rates and fast recovery times
  • Multiple technologies for different requirements and tasks – Most powerful lab Peltier Chiller without refrigerants and highly accurate and dynamic temperature regulation

  • Chemically resistant and durable PTFE vacuum seals for many years of continuous operation

  • Patented connection system with Easy-Clip prevents evaporating flasks and vapour tube from getting stuck

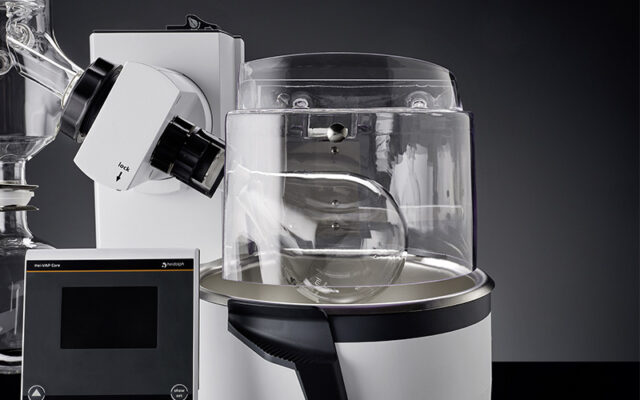

  • 210 °C safety heating bath, with ergonomic handles and pour spout, automatically shuts down when running dry or at over temperature > 5 °C

  • Cable connections with protection class IP 67 protect against corrosion and short-circuits

  • Polished glass condenser ventilation cap with PTFE inlay and threaded connection prevents sticking

  • Standby safety function and residual heat warning at heating bath temperatures above 50 °C

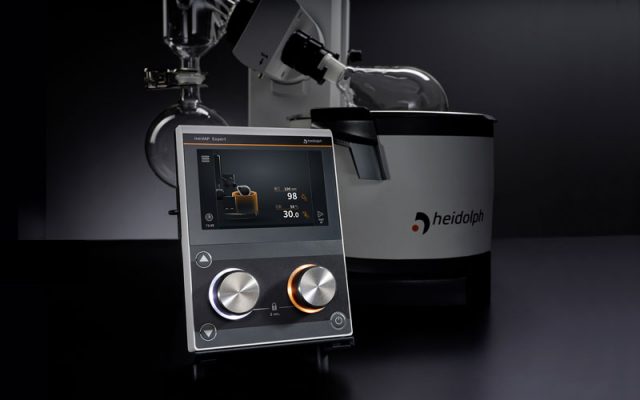

  • For quick access, all models also have separate knobs with LED rings showing the active functions

  • Model available with digital display or innovative touchscreen

  • Expert and Ultimate available as 'Control' model for additional control of vacuum sources and Hei-CHILL recirculation chillers
